Network Insulation Piercing Connector For Bare Conductor
The JBC insulation piercing connectors are applicable for the low voltage aerial cables. These connectors are used to establish connections between bare aluminum cable and insulated aluminum cable. Installation of JBT can be easily done by tightening the bolts while the main line and tap line are connected simultaneously. Stripping of insulation is avoided for Tap line.
Product Introduction
Product Description

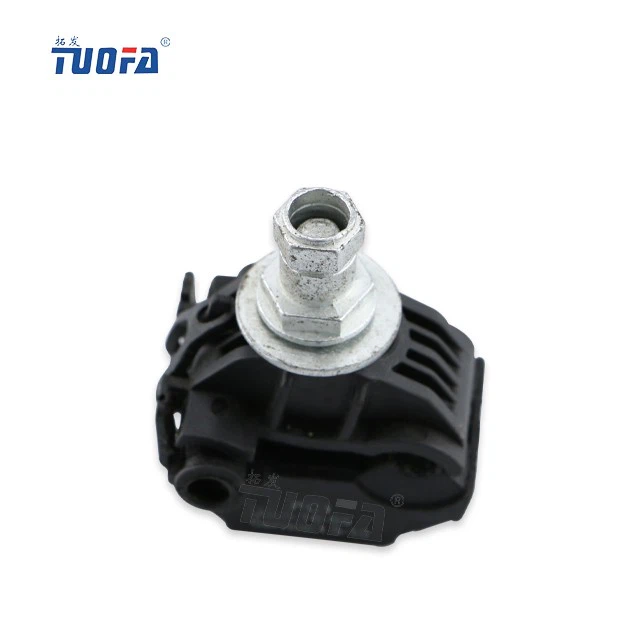

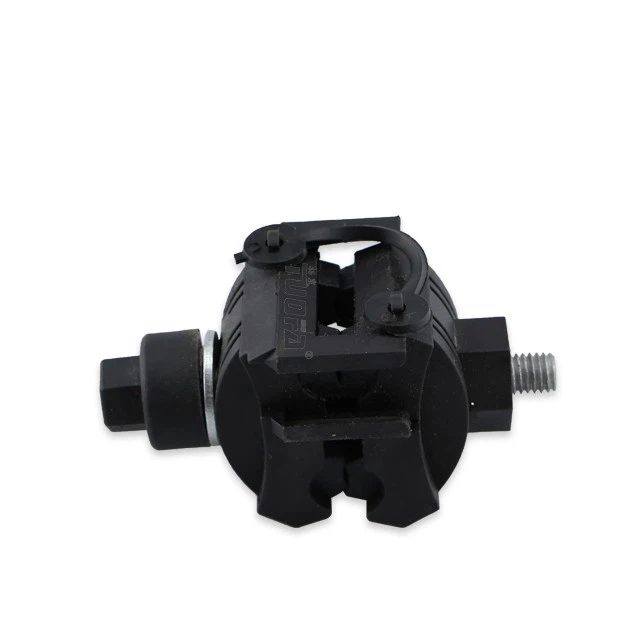

Insulation Piercing Connector
The JBC insulation piercing connectors are applicable for the low voltage aerial cables. These connectors are used to establish connections between bare aluminum cable and insulated aluminum cable. Installation of JBT can be easily done by tightening the bolts while the main line and tap line are connected simultaneously. Stripping of insulation is avoided for Tap line.
Puncture structure, using special installation tools to ensure puncture pressure, easy installation.
Structural seal, corrosion resistance and long service life.
The contact resistance is small and the temperature of the clamp is low.
The wide diameter conductor connection has wide application scope.
Used for branch connection of insulated cable for building distridution system.connection of LV overhead insulated cables, branch connection of LV insulated service-entrance cable, distribution system of streetlight.etc .
•Main line: Insulated copper or aluminium
•Branch line: Insulated copper or aluminium
•Live-line work or power-cut work is allowable
•Main body of connector is made of high strength insulating material that anti mechanical change or climatic variation.
•The screw that is equipped with fastening torque nut is anti-corrosion treated.the torque nut enables the installation to be much simple, safe and quick, its constant puncturing pressure guarantees best electrical effect for the cable connection.
•The connector is featured with property of waterproof, it is able to withstand voltage of 6KV in water without breakdown phenomenon.
•The waterproof sealing end cap of branch line prevents water from entering into the branch connected conductor.It can be branched on the left or right side according to the demand .
Company Profile
Brief Introduction:
Hebei Tuofa Telecommunication and Electric Equipment Manufacturing Co., Ltd. was founded in 1992, integrating the R&D, production and sale of high-tech communication equipment and electrical fittings. Our company covers an area of more than 28,000 square meters with a plant construction area of over 16,000 square meters. Our company staffs more than 280 members, including over 60 professionals and 28 quality management personnel.
Certification:
Our company has attained ISO9001:2000 quality management system certification by the provincial Administration of Industry and Commerce Our company has been awarded as "A Contract And Promise Keeping Unit In Hebei Province", "The Seventh Unit Of Consumer Trust", "The Governing Unit", "Product Quality Trustworthy Enterprise" and more.
Export:
Our products have been sold to all over the country, and have entered the overseas markets with export value doubling year-on-year. Our products are widely sold to Korea, Japan, Southeast Asia, Iraq, Zambia, the Middle East, Saudi Arabia, Australia and other countries and regions.
FAQ
1. Are you a factory?
Our Company is a professional factory of manufacturing.
2.Can I get a sample?
We can supply 1 or 2 samples for free.
3.How is the price benefit?
Based on market, we will keep giving best and competitive price for each customer.
4.Can you make it according to my drawing?
Yes, we can make various products according to your demands.
