Product Introduction

Product Description

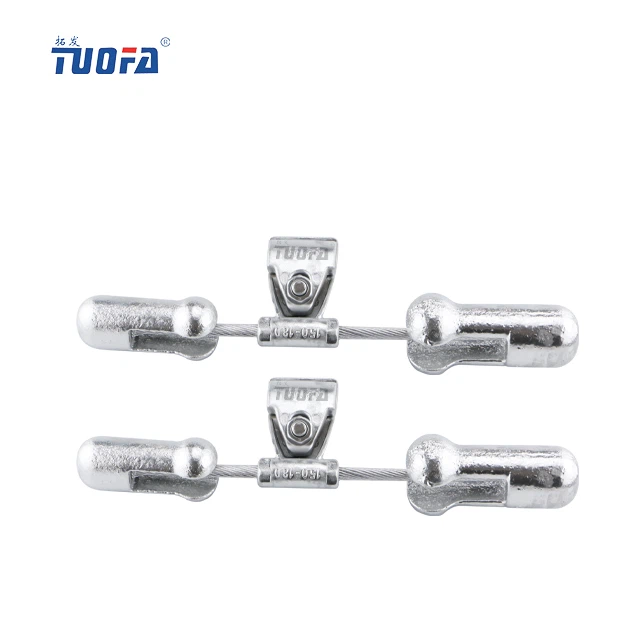

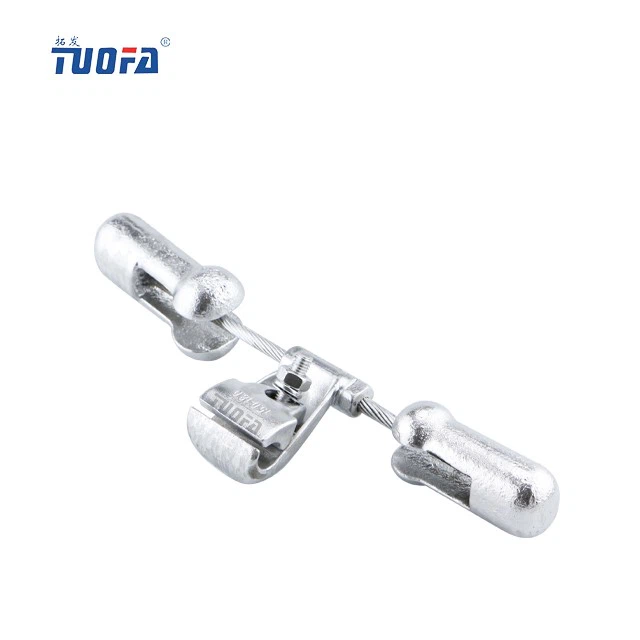

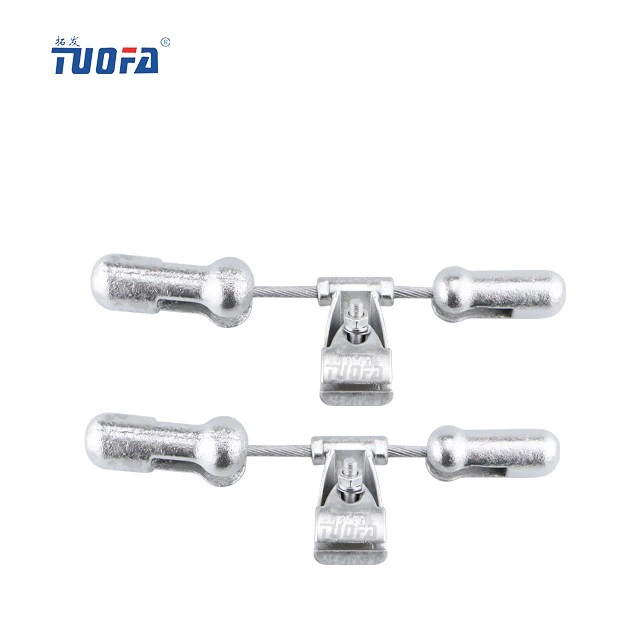

Stockbridge Damper

Stockbridge damper is used to control or suppress the wind induced vibration of overhead conductors. The Stockbridge damper targets oscillations due to aeolian vibration; it is less effective outside this amplitude and frequency range. Aeolian vibration is nothing but winding induced oscillation which has amplitude of millimeters to centimeters and a frequency of 3 to 150 Hz. Aeolian vibration causes damaging stress fatigue to the cable. It causes failure of conductor strands. It is connected at two end of the transmission power line span. The vibration damper has a length of steel messenger cable. Two metallic weights are attached to the ends of the messenger cable. The center clamp, which is attached to the messenger cable, is used to install the vibration damper onto the overhead conductor.

Materials

Helical rods: aluminium clad steel

Clamp: aluminium alloy
Counterweights: galvanized steel

Messenger cable: galvanized steel

Features：

Control aeolian vibration in each span of the line within the internationally accepted limits with the minimum number of units Maintain damping capacity over the entire range of ambient temperatures and for the whole expected life of the line Be free from corona at the maximum voltage of the line when installed on the phase conductors Be installed and removed on energized lines; Be maintenance-free for the whole expected life of the line Maintain a suitable grip on the cable resisting the loosening effect of vibrations Guarantee that individual components are secured against becoming loose in service

Company Profile:

Brief Introduction: Hebei Tuofa Telecommunication and Electric Equipment Manufacturing Co., Ltd. was founded in 1992, integrating the R&D, production and sale of high-tech communication equipment and electrical fittings. Our company covers an area of more than 28,000 square meters with a plant construction area of over 16,000 square meters. Our company staffs more than 280 members, including over 60 professionals and 28 quality management personnel.

Certification: Our company has attained ISO9001:2000 quality management system certification by the provincial Administration of Industry and Commerce Our company has been awarded as "A Contract And Promise Keeping Unit In Hebei Province", "The Seventh Unit Of Consumer Trust", "The Governing Unit", "Product Quality Trustworthy Enterprise" and more.

Export: Our products have been sold to all over the country, and have entered the overseas markets with export value doubling year-on-year. Our products are widely sold to Korea, Japan, Southeast Asia, Iraq, Zambia, the Middle East, Saudi Arabia, Australia and other countries and regions.

FAQ

1. Are you a factory?

Our Company is a professional factory of manufacturing.

2.Can I get a sample?

We can supply 1 or 2 samples for free.

3.How is the price benefit?

Based on market, we will keep giving best and competitive price for each customer.

4.Can you make it according to my drawing?

Yes, we can make various products according to your demands.
