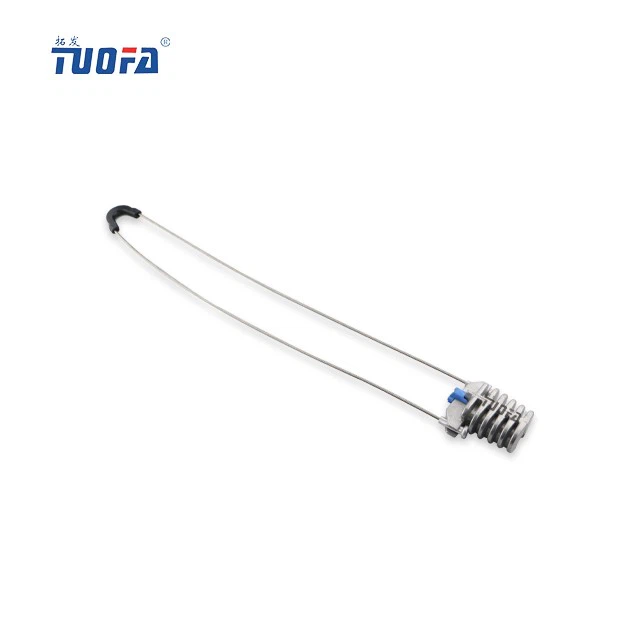

Stretch Wedge-Anchor Clamp With Self-Adjusting Tension Securing Overhead Line Insert Conductor Hot-Dip Galvanized

Porduct Description:

Definition of Wedge-Anchor Clamp:

Wedge-type tension clamp is also called an anchoring clamp. The tensioning provides the advantage of anchor and spiral clamps, these anchoring tension fasteners are mounted on a bend with the beginning and end of the route with the different intermediate points of greater length where it is feasible to stretch.

These wedge-type tension clamps are high in strength, fixation reliability, compactness, and ease of use and have a good installation speed. Also, these clamps are capable of securing cables with a diameter of 5-7 mm. The installation of optical wire is carried out using a suspended installation method, while the hinge is used to install brackets, hooks, or traverses. The body of the clamp loop is molded plastic and polymer wedges and made up of hot-dip galvanized steel wire.

Installation of Wedge-Anchor Clamp:



1.Anchor clamp for overhead line.

2.The dead end clamp for overhead line is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall.

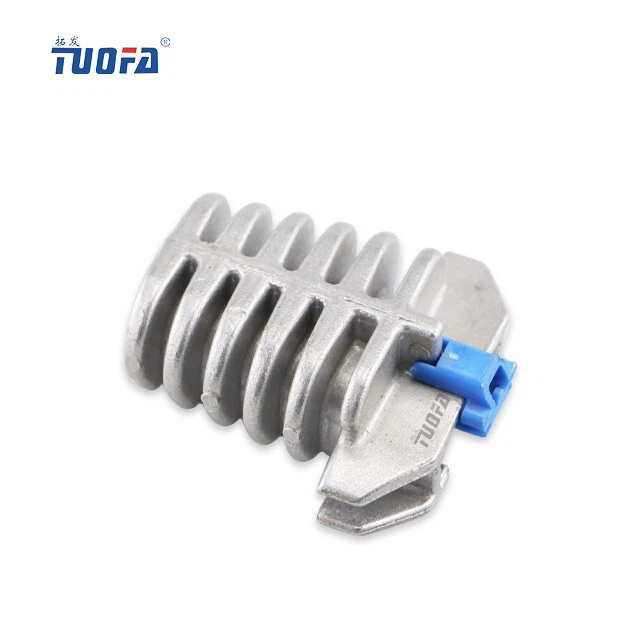

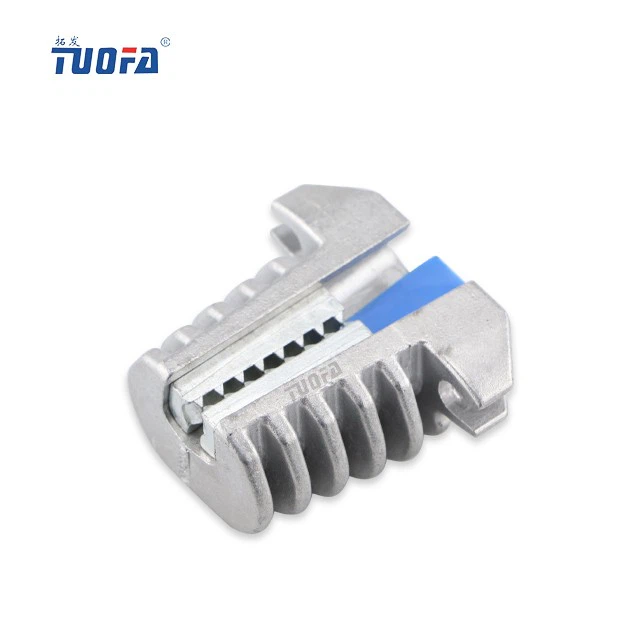

3.The anchor clamp is composed of a body, wedges and removable and adjustable bail or pad. One core Anchor clamps are design to supporting the neutral messenger,the wedge can be self-adjusting.

4. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.

FEATURES OF ANCHORING CLAMP:

*This clamping tool has budget modification

*Made up of durable plastic, this clamp is resistant to high temperature and UV radiation *To provide additional ease of installation the fixing loop is made up of hot-dip galvanized steel wire *The clip is provided with a retainer for ease of use *There is no requirement for special tools for the installation of the clamp

*The plastic of the clamp loop is strong and can withstand frost.

Profile:

Brief Introduction:

Hebei Tuofa Telecommunication and Electric Equipment Manufacturing Co., Ltd. was founded in 1992, integrating the R&D, production and sale of high-tech communication equipment and electrical fittings.

Our company covers an area of more than 28,000 square meters with a plant construction area of over 16,000 square meters. Our company staffs more than 280 members, including over 60 professionals and 28 quality management personnel.

Certification:

Our company has attained ISO9001:2000 quality management system certification by the provincial Administration of Industry and Commerce

Our company has been awarded as "A Contract And Promise Keeping Unit In Hebei Province", "The Seventh Unit Of Consumer Trust", "The Governing Unit", "Product Quality Trustworthy Enterprise" and more.

Export:

Our products have been sold to all over the country, and have entered the overseas markets with export value doubling year-on-year. Our products are widely sold to Korea, Japan, Southeast Asia, Iraq, Zambia, the Middle East, Saudi Arabia, Australia and other countries and regions.

FAQ:

1. Are you a factory?

Our Company is a professional factory of manufacturing.
2.Can I get a sample?
We can supply 1 or 2 samples for free.
3.How is the price benefit?
Based on market, we will keep giving best and competitive price for each customer.
4.Can you make it according to my drawing?
Yes, we can make various products according to your demands.





Why Choose Us?

• With a focus on quality and customer satisfaction, our company is a trusted supplier of Pole Line Hardware products.
• Our company has set up key laboratory test bases and key practice bases, further realizing the combination of front-end theoretical knowledge and application practice in the industry.
• Our company is committed to providing the best in Pole Line Hardware products and services, at competitive prices.
• We will repay our customers' support with excellent Stretch Wedge-Anchor Clamp With Self-adjusting Tension Securing Overhead Line Insert Conductor Hot-dip Galvanized and are willing to create a better tomorrow with you.
• We are a reliable supplier of high-quality Pole Line Hardware products, committed to meeting our customers' specific needs.
• The prosperity of a company is related to the survival of every company's employees, because only when the company is prosperous can employees have more opportunities.
• Our company is committed to providing customers with the best in Pole Line Hardware products and services, at competitive prices.
• The code of conduct of our team is: active communication, unity and cooperation, continuous innovation, and efficient execution.
• At our Chinese factory, we offer a range of quality Pole Line Hardware products at affordable prices.
• Our company has a group of research and development team with strong technical force, they are conscientious, conscientious and responsible, and strictly control in accordance with the standard in every link.
