Wire Rope Clip Dip A Cable

What is a Wire Rope Clip? Wire rope clips can be used to form a load bearing eye at the end of a cable or wire rope, or to connect two cables together with a lap splice. Wire rope clips are popular because they can be installed in the field and provide 80-90% efficiency of the rope breaking strength, depending on the diameter of the wire rope. As a general guideline, they are NOT to be used for making slings, as ASME B30.9 Slings standard states: “Mechanical wire rope terminations requiring periodic adjustment to maintain efficiency shall not be used to fabricate slings.”



Product Introduction

Product Description:

Types of Wire Rope Clips：

There are two main types of wire rope clips—U-Bolt and double saddle clips. U-Bolt wire rope clips are the most common and may be made of forged or malleable metal.



U-Bolt Wire Rope Clips

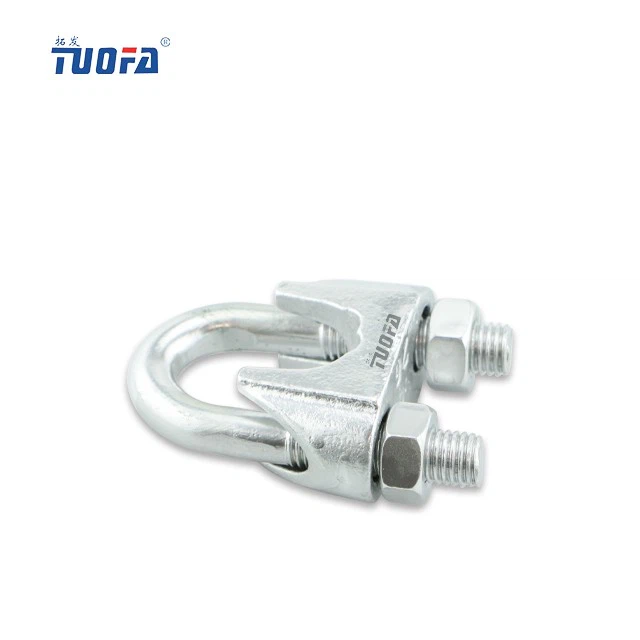

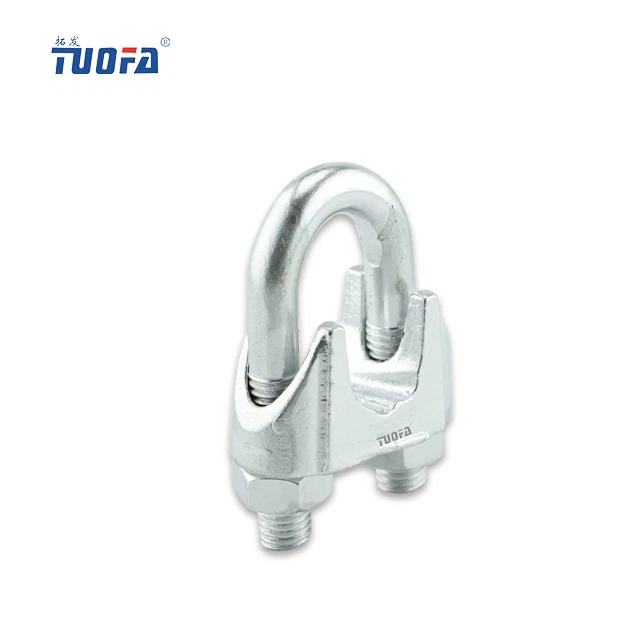

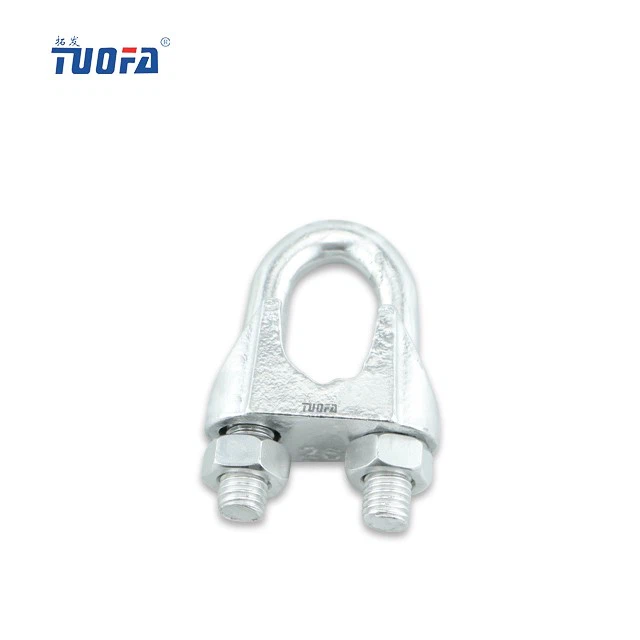

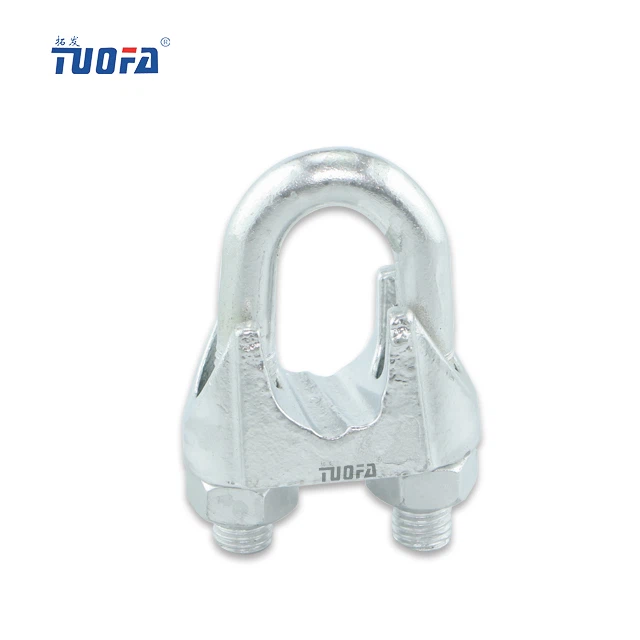

This type of wire rope clip is essentially a U-bolt, two nuts, and a metal base (saddle) that can be made from forged steel or cast iron. Careful consideration and attention must be given to the way U-bolt type wire rope clips are installed.



Forged Wire Rope Clips

The base of the wire rope clip is made from forged steel. Forged clips are heated and hammered into the desired shape—resulting in a consistent grain structure in the steel. Forged wire rope clips are used for critical, heavy-duty, overhead loads such as winch lines, crane hoist lines, support lines, guy lines, towing lines, tie downs, scaffolds, etc.



Malleable Wire Rope Clips

Malleable wire rope clips are used for making eye termination assemblies only with right regular lay wire rope and only for light duty uses with small applied loads, such as hand rails, fencing, guard rails, etc. The base of the wire rope clips is made from malleable cast iron, which may fracture under heavy use and does not have the desirable metal properties of steel, or the beneficial grain structure that a forged base has.

Double Saddle Wire Rope Clips

Double saddle wire rope clips consist of two saddles, each with a leg, and two nuts—one used on the top and one on the bottom. Double saddle wire rope clips can be used in either direction, so they take the guesswork out during installation when applying to the live end and the dead end of a piece of wire rope.

How To Install A Wire Rope Clip On An Eye Or Thimble

1.First, wrap the wire rope around the thimble or to form the eye, and turn back the correct amount of rope—as specified by the manufacturer. 2.Apply the first wire rope clip at the end of the dead end, with one base width of space. Use a torque wrench to tighten the nuts on the wire rope clip. 3.When applying the second clip (if required), place it as close to the eye loop or thimble as possible. Again, be sure to properly tighten the nuts of the clip with a torque wrench. 4.If more than two clips are required, the clips should be evenly spaced between the two that were placed first.

Company Profile:



Brief Introduction: Hebei Tuofa Telecommunication and Electric Equipment Manufacturing Co., Ltd. was founded in 1992, integrating the R&D, production and sale of high-tech communication equipment and electrical fittings. Our company covers an area of more than 28,000 square meters with a plant construction area of over 16,000 square meters. Our company staffs more than 280 members, including over 60 professionals and 28 quality management personnel.

Certification: Our company has attained ISO9001:2000 quality management system certification by the provincial Administration of Industry and Commerce Our company has been awarded as "A Contract And Promise Keeping Unit In Hebei Province", "The Seventh Unit Of Consumer Trust", "The Governing Unit", "Product Quality Trustworthy Enterprise" and more.

Export: Our products have been sold to all over the country, and have entered the overseas markets with export value doubling year-on-year. Our products are widely sold to Korea, Japan, Southeast Asia, Iraq, Zambia, the Middle East, Saudi Arabia, Australia and other countries and regions.

 FAQ

1. Are you a factory?

Our Company is a professional factory of manufacturing.

2.Can I get a sample?

We can supply 1 or 2 samples for free.

3.How is the price benefit?

Based on market, we will keep giving best and competitive price for each customer.

4.Can you make it according to my drawing?

Yes, we can make various products according to your demands.
